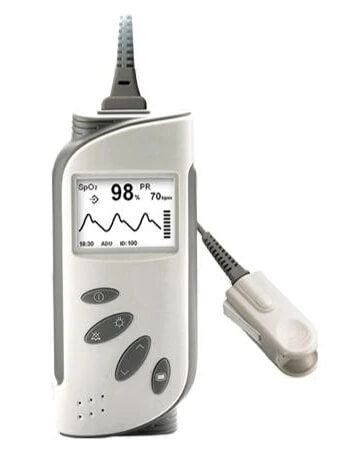

Avante Waveline Nano-V2 Pulse Oximeter
The SpO2 and PR are measured by the Avante Waveline Nano-V2. Even in difficult circumstances, it provides sensitive, accurate, and reliable measurements of blood oxygen saturation.
Key Features:
- Measures SpO2 and Pulse Rate
- Trend review
- Rechargeable battery for up to 30 hours of work
- Automatic power-off function for power saving
- Sleek, compact design
- Unique sensor design
- Compact & lightweight
- Battery charger stand design (optional)
- LCD display
- Real-time clock
- SpO2 Pulse-tone Modulation (Pitch tone)
- Advanced SpO2 module with equivalent performance as the industry leaders'
- Real-time measurements display
- Plethysmogram display
- Trend table and trend graphs
- Large storage capacity
- Data management via PatientCare Viewer software
- Standard lingual sensor with large and small clips
OPTIONS:
- Carrying case
- Boot covers
- Charging stand
Documents and Resources:
*To download click below*
Avante Waveline Nano-V2 Pulse Oximeter
Year Manufacturer's Warranty
Avante Medical Surgical warranties its equipment to be free of defects in materials and workmanship under normal use and with appropriate maintenance. Length of warranty varies from product to product, so please confirm with your Avante Medical Surgical representative for specific warranty coverage. For plastics, rubber, or other expendable items, we warrant only that such parts will be free of defects in materials and workmanship at the time of purchase.
GENERAL:
- Size: 160 (L) × 70 (W) × 37.6 (H) mm
- Weight: 165g (without battery)
- Display:
- Screen Type: 128 x 64 dot-matrix LCD, with white LED backlight
- Big Numeric Mode: SpO2, PR and Bar graph displayed
- Waveform Mode: SpO2, PR, Bar graph and Plethysmogram displayed
- 4 Alkaline Batteries (6V total)
- Typical Operation Time: 48 hours
- Ni-MH rechargeable battery package (4.8 V total)
- Typical battery life: 30 hours/36 hours
- Charge time: 2.5 hours to 80%; 4 hours to 100%
MEASUREMENT:
- SpO2 Range: 0% - 100%
- Pr: 25 bpm ~ 300 bpm
- SpO2 Accuracy:
- Saturation
- Adult and Pediatric ± 2% (70 %~ 100 %)
- Undefined (0 %~ 69 %)
- Neonate ± 3% (70 %~ 100 %)
- Undefined (0 %~ 69 %)
- Pulse Rate Accuracy: 25bpm ~300bpm ± 2bpm
- Alarm Range:
- SpO: 2 0 % ~ 100 %
- PR: 0 bpm ~ 300 bpm
- Resolution:
- SpO2: 1 %
- Bpm: 1 bpm
