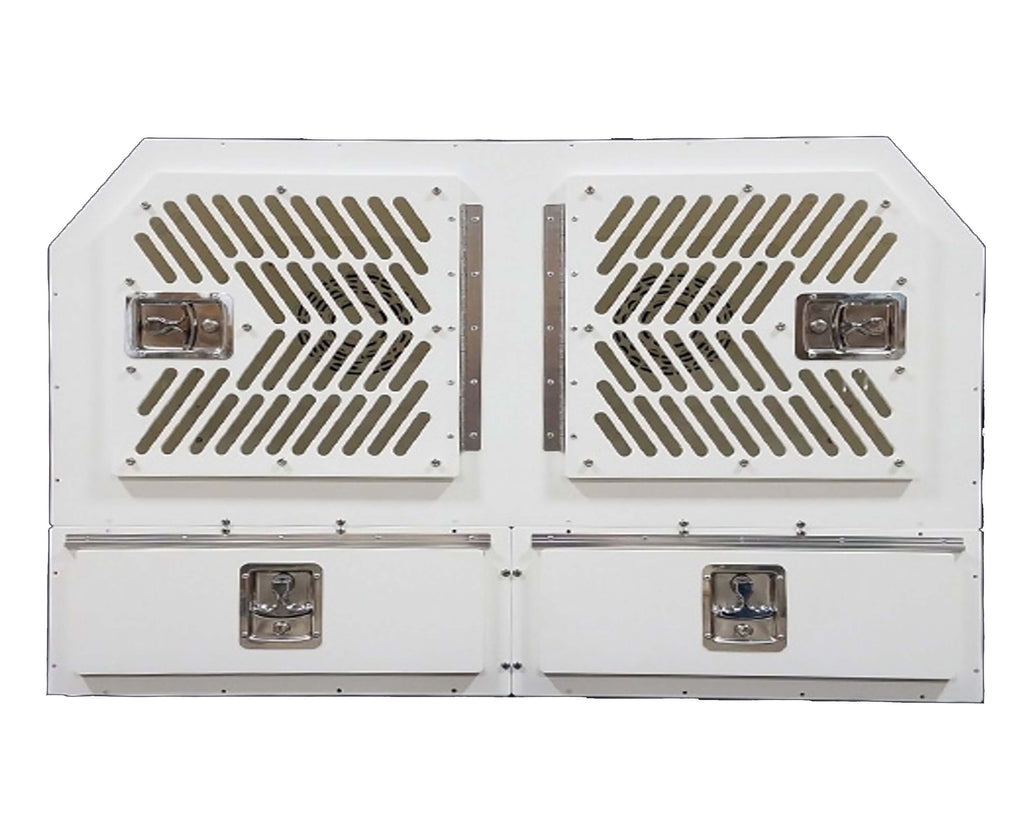

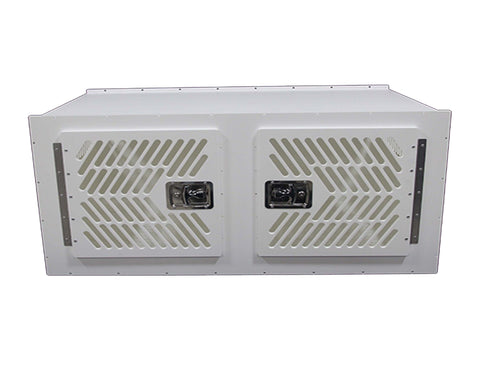

Northstar Plastics 2-Dog Box Kit
The standard assembly of straps and dados and the completely welded exterior seams make a very robust, safe, and durable dog box. Framed door opening contains bedding and spills. Without having to caulk or seal, the interior is easy to clean and maintain clean. White plastic reflects summer heat and stays cool to the touch.
Fabricated from ½” and ¼” High-Density Polyethylene (HDPE) (similar to commercial cutting board material) the dog box will not discolor your dog’s coat or chip/scratch/peel like powder-coated and aluminum boxes. Extremely resistant to dents, deformities, or breaks in case of mishandling or falling.
Note: Northstar Plastics Dog Box Kits are available in 3 standard configurations for ease of selection.
Express Series

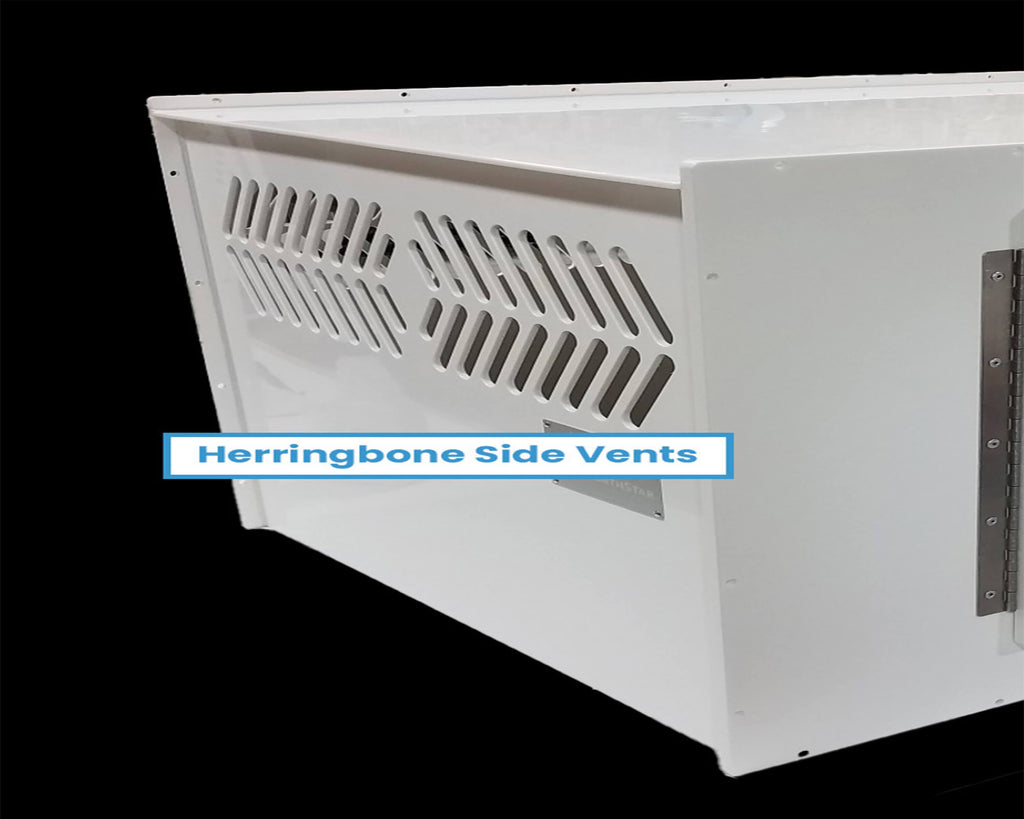

The Express Series Dog Box is typically used inside SUV’s, vans, and under truck toppers. It is also great for campers and toy haulers. Optional angled top corners improve fit in SUV’s and vans. Herringbone vents on the side panels compliment the herringbone door vent design and provide maximum airflow and circulation in both heated and airconditioned vehicles. Center dividers (as applicable) also feature herringbone vents for circulation between dog compartments.

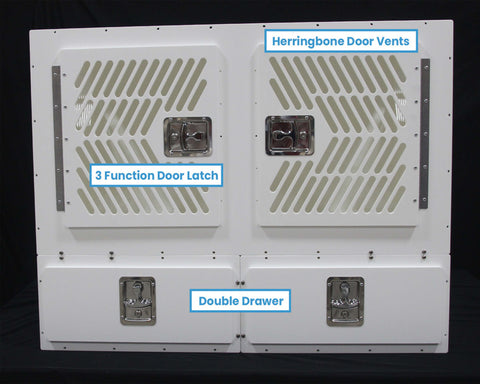

All Express Series features 3 Function (twist, fold, lock) latches and (4) D-Ring tie downs for maximum security during transportation. Standard perimeter mounting flanges provide for easy expansion and interconnectivity of multiple boxes with optional connector kits.
Optional 2 Drawer Storage Units are available for 2 Dog and 3 Dog Boxes. Note: optional 2-drawer storage units elevate 3 dog boxes above wheel wells in pickup beds.
Hunter Series
The Hunter Series Dog Box is designed for use in exposed truck beds but can also be used inside SUV’s and vans. Standard round hole vents provide air circulation and ventilation in both inside and outside applications. Center dividers (as applicable) feature herringbone vents for circulation between dog compartments. Optional angled top corners improve fit in SUV’s and vans and soften the visual look against the back of truck cabs.

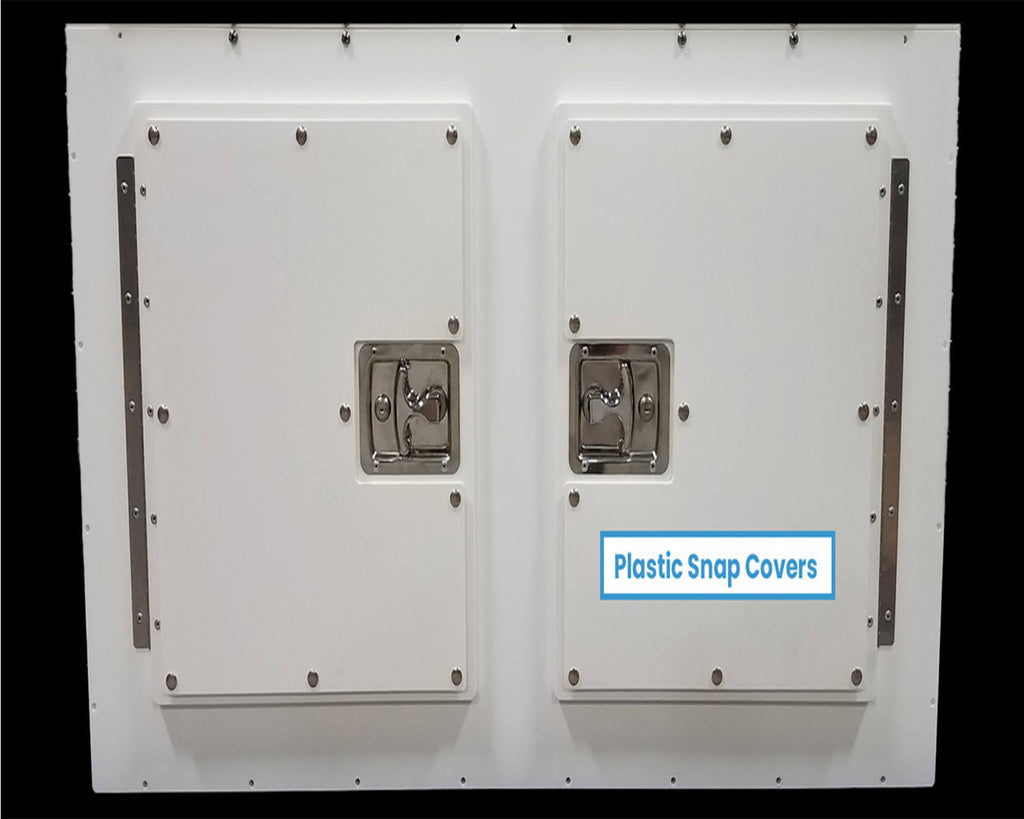

Hunter Series Dog Boxes include sliding side vent covers (3 position detents for open, ½ open, and closed) and removable plastic snap covers for doors to accommodate both hot and cold weather conditions.
All Hunter Series features 3 Function (twist, fold, lock) latches and (4) D-Ring tie downs for maximum security inside during transportation. Standard perimeter mounting flanges provide for easy expansion and interconnectivity of multiple boxes with optional connector kits.
Optional 2 Drawer Storage Units are available for 2 Dog and 3 Dog Boxes. Note: optional 2-drawer storage units elevate 3 dog boxes above wheel wells in pickup beds.
The Pro Series Dog Box is designed for use in exposed or covered truck beds. Standard round hole vents provide air circulation and ventilation in both inside and outside applications. Center dividers (as applicable) feature herringbone vents for circulation between dog compartments. Optional angled top corners improve fit under truck toppers and soften the visual look against the back of truck cabs.
Pro Series Dog Boxes include sliding side vent covers (3 position detents for open, ½ open, and closed) and removable plastic snap covers for doors to accommodate both hot and cold weather conditions.

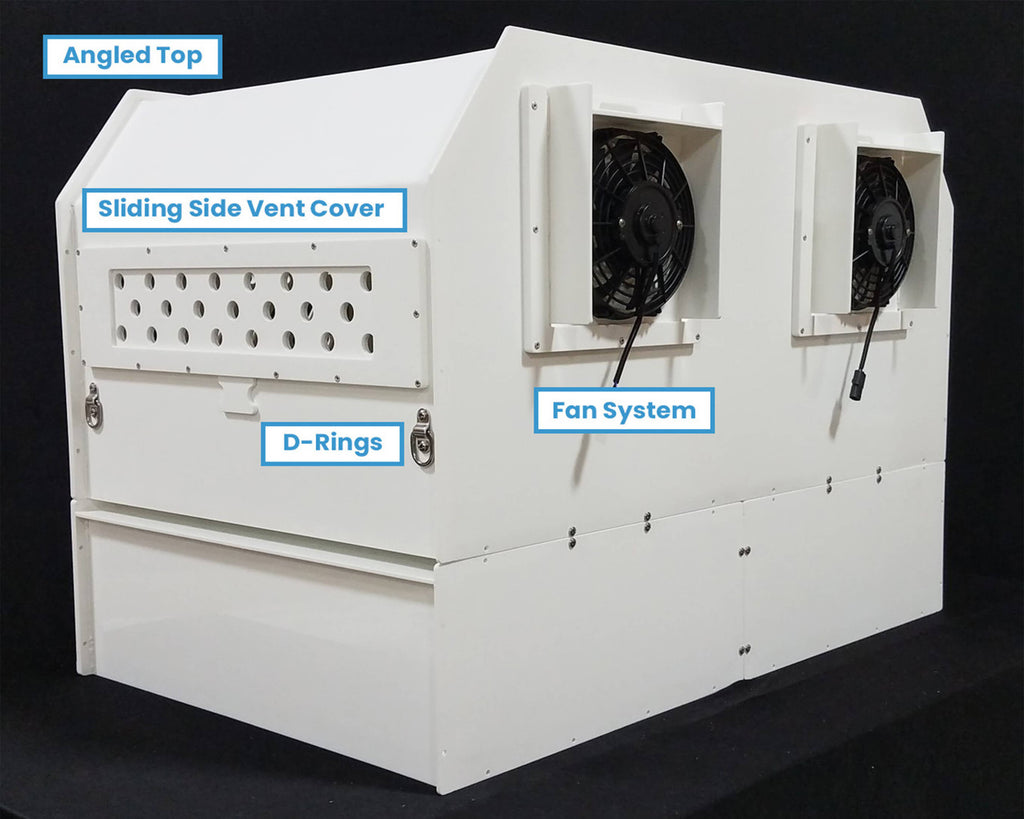

Additionally, Pro Series include high-capacity, reversible fan kits for each dog compartment. This allows for maximum circulation in or out for each dog compartment. Fans are removable and can be replaced with a solid cover during cold weather use.

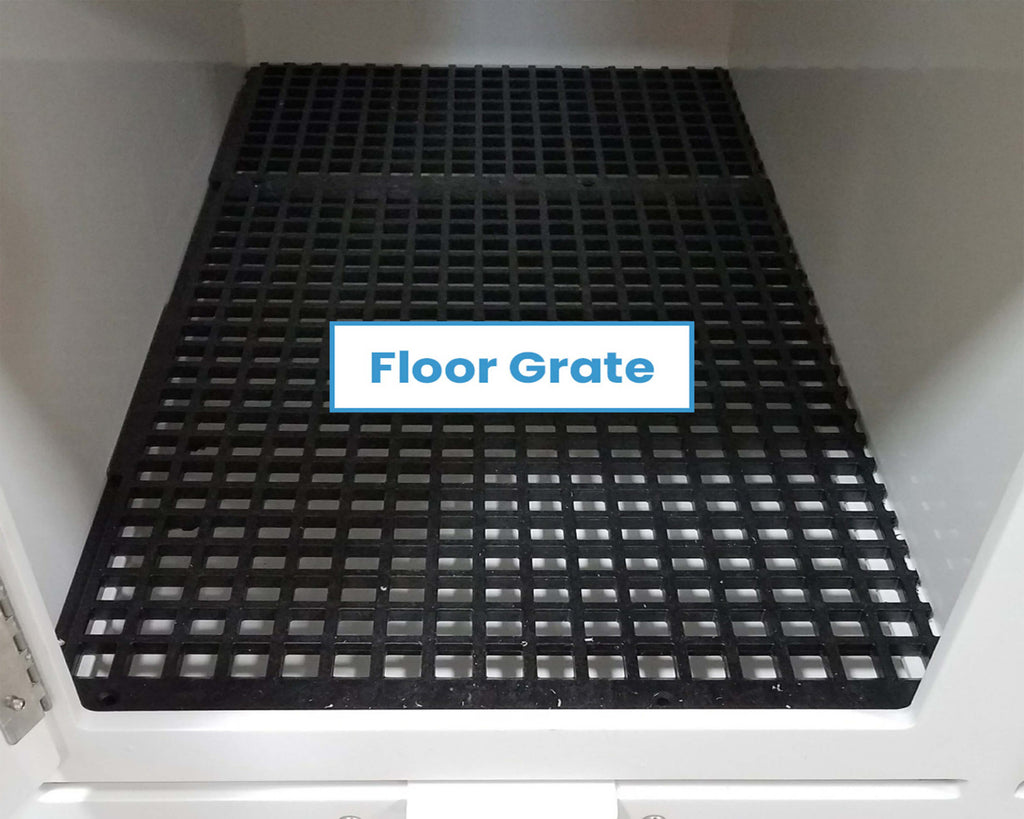

Lastly, all Pro Series boxes include solid panel grated flooring to provide extra traction and keep dogs above wet floors. Absorptive bedding can be added below floor grates to contain liquids.
All Pro Series features 3 Function (twist, fold, lock) latches and (4) D-Ring tie downs for maximum security during transportation. Standard perimeter mounting flanges provide for easy expansion and interconnectivity of multiple boxes with optional connector kits.
Optional 2 Drawer Storage Units are available for 2 Dog and 3 Dog Boxes. Note: optional 2-drawer storage units elevate 3 dog boxes above wheel wells in pickup beds.
Dog Box Series Chart
| Dog Box Series (S) Standard, (O) Optional | Herringbone door vents | 3 Function door latch (twist, fold, lock) | Center divider herringbone vents | Herringbone side vents | Standard round hole side vents | Sliding, 3-position side vent covers | Plastic snap-on door covers | High-Capacity Reversible Fan System | Rigid floor grate | Accessory mounting flange | Angled Top CornersAngled Top Corners | 2 Drawer Storage | Accessory connector kits |
| Express | S | S | S | S | - | - | - | - | - | S | O | O | O |
| Hunter | S | S | S | - | S | S | S | - | - | S | O | O | O |
| Pro | S | S | S | - | S | S | S | S | S | S | O | O | O |
