Hale Pet Door - Door Mounted Dog and Cat Door
Hale Pet Doors are the leader in the Dog and Cat Door industry, constructed of only high-quality strong aluminum in the USA. Hale Pet Doors are an investment designed to last a lifetime of daily use by your pet. Hale Pet Doors also have the best in industry insulation rating saving you money every month. Don't waste your money on cheap imitations that will need to be replaced after only a few months.

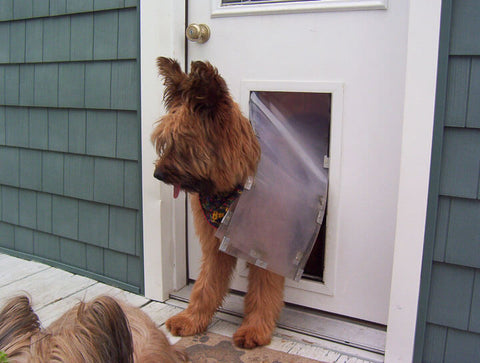

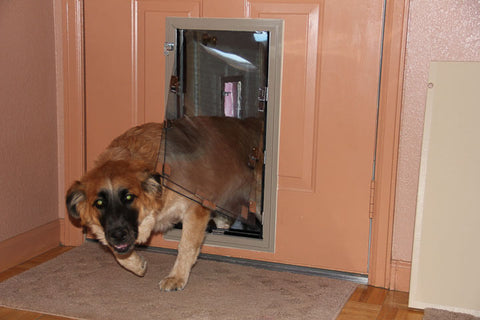

Door Model Pet Door is designed to be installed in a 'People' Door. It's one of the best selling models from Hale Pet Doors for a number of reasons: It's VERY easy to install on your own, it fits most doors 1/38" to 2" thick, it works with wood, metal, raised panel, hollow core, and even French doors, the design is self-framing and self-supporting and finally it's backed by an industry-leading 5-year manufacturer warranty (see below for details).
*This door can ONLY be installed in a 'people' door, Here is the Wall Mounted pet door
Features:
- Aluminum frame available in 4 colors
- Clear vinyl flaps offered in single or double options. Double flap option provides additional insulation and protection from weather and is the recommended choice.
- Magnets and nylon weatherstrip around the edges of the flaps hold flaps in place and keeps out weather & bugs but are easy for pets of all sizes to use
- Locking cover provides security as it shock and impact resistant. Secures with a steel pin lock (optional Secondary Exterior Cover for exterior or door).
- Made in the USA
- 5-year limited manufacturer warranty
Options:
- Flap Size: The Door Model is available in 12 standard sizes shown in the chart below. For detailed sizing instructions, please see the "Sizing Guide" tab at the top.

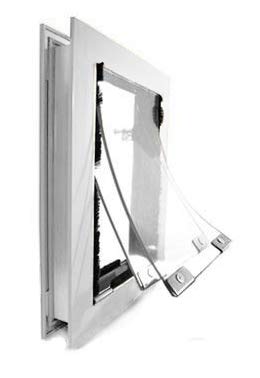

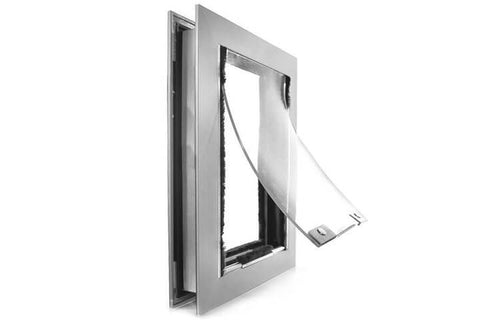

- Flap Type: Our Door Model comes standard with double flaps for improved insulation and energy efficiency. In some situations (i.e. installing in an interior door) you may choose to install a single flap model. If you do choose a single flap, it will be installed on the exterior frame of your pet door.

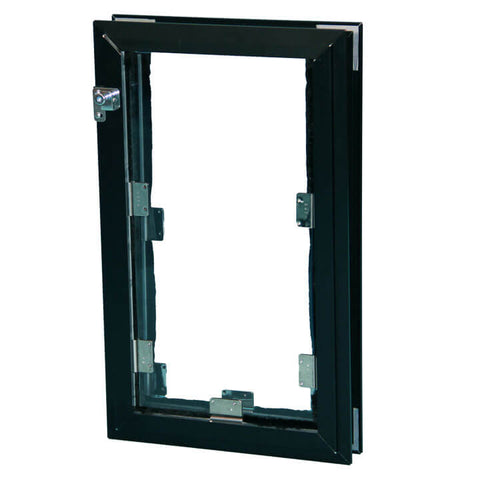

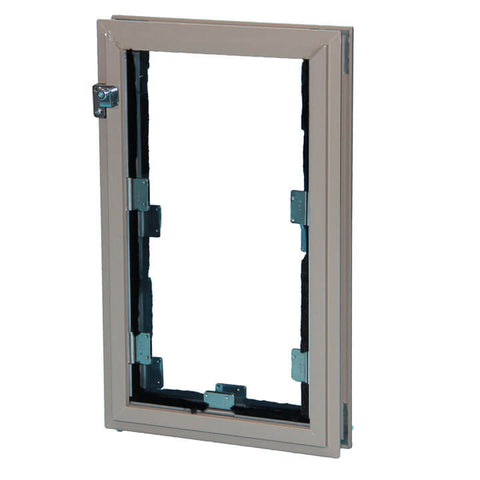

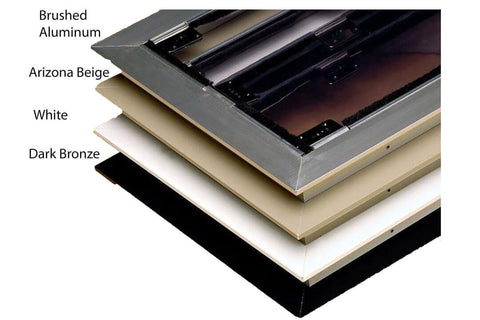

- Frame Color: Arizona Beige -- hard-coat paint, looks like coffee with a couple of creamers added. Brushed Aluminum -- anodized metal, satin nickel color, looks like the bottom of a Coke can. Dark Bronze -- anodized metal, chocolate brown, looks almost black in dimmer light. White -- white hard coat paint
- Door Thickness: Most doors are between 1 3/8" and 2" thick and our door model is designed to easily fit these doors. If your door is thicker than this, please order our Wall Model. If your door is between 5/8" and 1 3/8", you can still order our standard door but the door will need to be modified. You can order an optional buildout to add to your installation that will space the door frames the correct distance apart. Please add 10% to the cost of the door for a buildout.

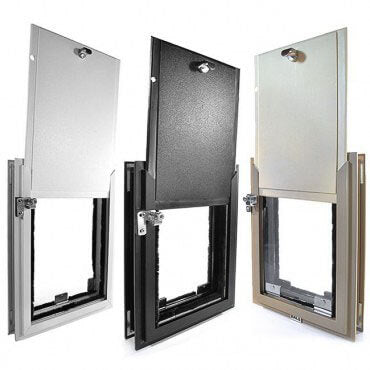

- Security Cover Load Direction: The security cover comes standard on our models as an interior top-load version. On occasion, there will be an obstruction above the pet door that prevents the security cover from being raised up far enough to remove. In those instances, we provide an optional side load model with your choice of left or right side slide (Load direction is determined when looking at the door).
- Secondary Exterior Cover (optional): Choose this option if you would like a second cover on the exterior of your door pet door. This cover does not come with a pinlock unless purchased separately. NOTE: Choosing this option makes your door pet door a "custom" pet door for return policy purposes and entitles you to 50% credit towards the purchase of a new dog door should you need to return your pet door for any reason.
- Rain Cap: The raincap is a Free option and part of Hale Pet Door's water containment and diversion system to help prevent moisture intrusion into your pet door. This awning like attachment hooks onto the top edge of the outside frame and helps protect from water intrusion into the pet door itself and therefore into your house. The rain caps are available in our four standard frame colors and will be supplied to match the exterior pet door frame.
- Training Flap: The training flap is made of a similar material to our regular flap but it has no strikes and has been vertically slashed several times to make it very easy to push through. It does not, however, provide the energy efficiency of our regular flap and should only be used until your pet is used to using the door.
Sizing Chart
| Size | Passage Opening | Rough Opening | Outside Frame Dimensions | Shoulder Height | Pet Width | Pet Weight | Breed Example |
|---|---|---|---|---|---|---|---|
| Small | 5 1/2" w x 7 1/2" h | 7 3/8" w x 9 3/8" h | 8 3/8" w x 10 3/8" h | Up to 7" | Up to 4" | Up to 8 lbs. |
 Cats (only very small) |
| Small Medium | 6 1/2" w x 9 1/2" h | 8 1/2" w x 11 1/2" h | 9 9/16" w x 12 9/16" h | 9" - 13" | Up to 5" | 6-12 lbs |
 Most Cats, Chihuahua, Dachshund, Mini Poodle |
| Tall Small Medium | 6 1/2" w x 12 1/2" h | 8 1/2" w x 14 1/2" h | 9 9/16" w x 15 3/8" h | 12" - 15" | Up to 5" | 12-25 lbs |
 Mini Pinscher, Some Terriers, Maltese |
| Medium | 8 1/2" w x 12 1/2" h | 10 1/2" w x 14 1/2" h | 11 9/16" w x 15 3/8" h | 12" - 15" | Up to 8" | 10-35 lbs |
 Terriers, Pug, Corgi, Shiba Inu |
| Tall Medium | 8 1/2" w x 16" h | 10 1/2" w x 18" h | 11 9/16" w x 19 1/16" h | 15" - 20" | Up to 8" | 30-45 lbs |
 Cocker Spaniel, Sheltie, Beagle |
| Large | 11" w x 16" h | 13" w x 18" h | 14 1/16" w x 19 1/16" h | 15" - 20" | Up to 10" | 40-55 lbs |
 Basset, Chow, Keeshond, Husky |
| Tall Large | 11" w x 19 1/2" h | 13" w x 21 5/8" h | 14 1/16" w x 22 9/16" h | 21" - 24" | Up to 10" | 50-95 lbs lbs |
 German Shepherd, Labrador Retriever |
| Tall Large Plus | 11" w x 23 1/2" h | 13" w x 25 5/8" h | 14 1/16" w x 26 9/16" h | 25" - 27" | Up to 10" | Up to 110 lbs |
 Standard Poodle, Irish Setter, Greyhound |
| Extra Tall Large | 11" w x 27 1/2" h | 13" w x 29 5/8" h | 14 1/16" w x 30 9/16" h | 25" - 31" | Up to 10" | Up to 120 lbs |
 Afghan, Irish Wolfhound, Borzoi |
| Extra Large | 14" w x 19 1/2" h | 16" w x 21 5/8" h | 17 1/16" w x 22 9/16" h | 22" - 24" | Up to 13" | Up to 120 lbs |
 Rottweiler, Akita, Bulldog |
| Extra Large Plus | 14" w x 23 1/2" h | 16" w x 25 5/8" h | 17 1/16" w x 26 9/16" h | 25" - 27" | Up to 13" | Up to 150 lbs |
 St. Bernard, Newfoundland |
| Giant | 15 1/2" w x 27 1/2" h | 17 5/8" w x 29 5/8" h | 18 9/16" w x 30 9/16" h | 25" - 31" | Up to 14" | Most Giant Breeds |
 Great Dane, Mastiff, Great Pyrenees |
Why Choose a Hale Pet Door:
- Durability - unlike cheaper plastic doors, Hale Pet Doors are built using extruded aluminum with steel reinforced corners making them stronger and more durable than others. The flaps are made using a high quilty PVC vinyl which outlasts cheaper alternatives
- Security & Safety - Each pet door comes with an impact and fire resistant polymer security cover to intruders out and your home safe and secure. The cover is secured directly to the frame preventing the lock from being opened from the outside (unlike other pet doors).
- Energy Efficient - Ultra strong magnets, weather-resistant double flaps and all around nylon weather stripping provide industry-leading energy efficiency in the harshest hot and cold climates
- Warranty & Support - All Hale Pet Doors include a comprehensive 5-Year "No-Fault" Warranty (see warranty below for details). Experienced technicians are available to for consultation as needed to assist with installation.
- Made in the USA - All Hale Pet Doors are hand-built in the USA to the highest quality standards and attention to detail.
5-Year Warranty
Hale Pet Doors offers a 5-Year No Fault Warranty on all pet doors. Hale Pet Doors guarantees and warrants that products and component parts shall be free from any defects in material and workmanship. The warranty period for all Hale Pet Door models is effective from the date of purchase and extends to the anniversary date marking the end of the fifth year. Hale Pet Doors agrees to exchange or repair at the companies expense, any unit found to be defective in workmanship and/or material, subject to factory inspection. Some restrictions apply, please see the complete Hale Pet Door Warranty for details.
How to Measure Your Pet
There are three measurements to take into consideration when choosing the correct size door for your pet, the following guidelines will help you get accurate measurements. If you get stuck or need any help please contact us, our experts are ready to help.
#1 - Measure Width – Simply measure your pet at the widest point and add an inch or two for safety. If your pet is long-haired, don’t forget that this may make them appear wider than they really are. Alternately, you can open a door just wide enough for your pet to pass through and measure the width of the opening, again adding an inch or two for safety.
#2 - Measure Height – The pet door flaps should be at least an inch or two above the top of your pet’s back not the head. To get this length, measure your pet from the withers (top of the shoulders) to the floor. Remember that your door won’t be placed completely at floor level.
#3 - Measure Rise – This measurement is only applicable for panel models which come with the rise built-in. Door, wall, screen, and window models can be mounted at whatever height is comfortable for your pet. If you have a short-legged dog or an older dog that can’t lift his feet very high, or if the door is installed with a step on either side, consider ordering a “no rise” door. Our standard rise is 5” or 10”.
Alternate method: You can also make a sample door opening out of a large piece of cardboard based on the above size chart. Place it in a door opening and experiment with height placement. Order the size most comfortable for your pet.
Door Sizing Chart
| Size | Passage Opening | Rough Opening | Outside Frame Dimensions | Shoulder Height | Pet Width | Pet Weight | Breed Example |
|---|---|---|---|---|---|---|---|
| Small | 5 1/2" w x 7 1/2" h | 7 3/8" w x 9 3/8" h | 8 3/8" w x 10 3/8" h | Up to 7" | Up to 4" | Up to 8 lbs. |
Cats (only very small) |
| Small Medium | 6 1/2" w x 9 1/2" h | 8 1/2" w x 11 1/2" h | 9 9/16" w x 12 9/16" h | 9" - 13" | Up to 5" | 6-12 lbs |
Most Cats, Chihuahua, Dachshund, Mini Poodle |
| Tall Small Medium | 6 1/2" w x 12 1/2" h | 8 1/2" w x 14 1/2" h | 9 9/16" w x 15 3/8" h | 12" - 15" | Up to 5" | 12-25 lbs |
Mini Pinscher, Some Terriers, Maltese |
| Medium | 8 1/2" w x 12 1/2" h | 10 1/2" w x 14 1/2" h | 11 9/16" w x 15 3/8" h | 12" - 15" | Up to 8" | 10-35 lbs |
Terriers, Pug, Corgi, Shiba Inu |
| Tall Medium | 8 1/2" w x 16" h | 10 1/2" w x 18" h | 11 9/16" w x 19 1/16" h | 15" - 20" | Up to 8" | 30-45 lbs |
Cocker Spaniel, Sheltie, Beagle |
| Large | 11" w x 16" h | 13" w x 18" h | 14 1/16" w x 19 1/16" h | 15" - 20" | Up to 10" | 40-55 lbs |
Basset, Chow, Keeshond, Husky |
| Tall Large | 11" w x 19 1/2" h | 13" w x 21 5/8" h | 14 1/16" w x 22 9/16" h | 21" - 24" | Up to 10" | 50-95 lbs lbs |
German Shepherd, Labrador Retriever |
| Tall Large Plus | 11" w x 23 1/2" h | 13" w x 25 5/8" h | 14 1/16" w x 26 9/16" h | 25" - 27" | Up to 10" | Up to 110 lbs |
Standard Poodle, Irish Setter, Greyhound |
| Extra Tall Large | 11" w x 27 1/2" h | 13" w x 29 5/8" h | 14 1/16" w x 30 9/16" h | 25" - 31" | Up to 10" | Up to 120 lbs |
Afghan, Irish Wolfhound, Borzoi |
| Extra Large | 14" w x 19 1/2" h | 16" w x 21 5/8" h | 17 1/16" w x 22 9/16" h | 22" - 24" | Up to 13" | Up to 120 lbs |
Rottweiler, Akita, Bulldog |
| Extra Large Plus | 14" w x 23 1/2" h | 16" w x 25 5/8" h | 17 1/16" w x 26 9/16" h | 25" - 27" | Up to 13" | Up to 150 lbs |
St. Bernard, Newfoundland |
| Giant | 15 1/2" w x 27 1/2" h | 17 5/8" w x 29 5/8" h | 18 9/16" w x 30 9/16" h | 25" - 31" | Up to 14" | Most Giant Breeds |
Great Dane, Mastiff, Great Pyrenees |
Other Considerations for Choosing the Correct Door Size
Older pets don’t like to use pet doors that are uncomfortable. Make sure you get a door that your pet will always be able to use. If you currently have a kitten or puppy, remember that they will grow.
Mount the pet door so that it is low enough for your pet to comfortably step over. Young pets can raise their legs up to their chest but older pets may have trouble with this.
Make sure the pet door is tall enough for your pet. Hunching over can be hard on your pet’s hips, especially as they age. And the flaps on your door will last longer if your pet isn’t rubbing against the top of the door as he passes through.
If you have more than one pet, make sure you get a door that will work for all of them: low enough for the shortest one to step over but tall enough for the tallest one to fit through comfortably.
Don’t forget that your pet needs access from both sides of your pet door. If you are installing the door in an area that has steps outside, please take into consideration how your pet will have to get through the door. This is especially true of our panel models. They have a standard rise of 5” but can be ordered with no rise (actually about 1” of frame to step over) instead to make it easier for your pet.
Hale Pet Doors Ship from Colorado via FedEx Ground
- Door and Wall models normally take 3-5 days to build and assemble for shipment.
- Transit time to you can be found using the map below.
Fast Shipping
We do our best to ship FAST and make it easy for you. At the top of this page, we have noted how long it normally takes to process and ship your order. You can then use the map above to estimate delivery times. We will send you an email confirmation with the tracking number as soon as your order ships
Please see our Shipping Policy for full details.
Easy Returns
Things don't always work out, we get it. We'll do our very best to make your return simple and easy. Please email us and we'll provide all the return instructions for your specific item and an RMA number (required).
Please see our Return Policy for complete details.

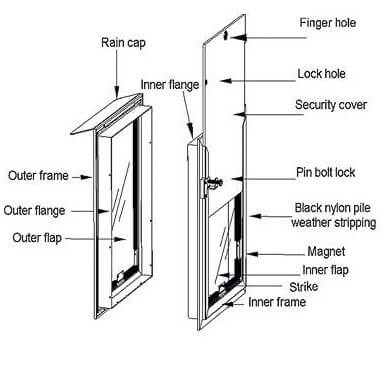

Specifications:
Flaps: Double flaps (one flap on each door surface) made of flexible 3/16” clear PVC vinyl.
Inner Frame: Inner frame made of two separate metal extrusions. Three sides entrap the security cover. Both metals are .063” wall thickness.
Outer Frame: Extruded 6063-T5 aluminum with .063” wall thickness. Designed to sleeve into the inside frame.
Flange: The outer frame flange is .070” smaller than the inner frame flange to allow the frame to sleeve together.
Alnico5 Magnets: A ¼” rod magnet 1 ½” long made from an aluminum, nickel and cobalt alloy known for its strength and durability. Door size determines number of magnets.
Strikes: Made of ferrous stainless steel. 1 ½” long, ¾” tall and 1/32” thick. U shaped with interior prongs, when squeezed onto the vinyl flap, the barbed prongs hold firmly.
Weather stripping: Flap is surrounded by ½” nylon pile for maximum insulation. Nylon is woven into a backing 9/32” wide and 1/32” thick.
Security Cover: 1/4” thick King Starboard® polymer sheet. Extremely shock and impact resistant. Has a 3/8” diameter locking hole.
Cover Handle: A lightweight zinc alloy cabinet knob pull type handle in a satin nickel finish that is 25/32” wide, 19/32” tall and 53/64” deep with a 1/2” deep and 21/32” wide finger hole. It is attached to the cover with a 12 mm long zinc coated steel flat head Philips screw with a .70 thread size that is countersunk to prevent scratching the frame.
Pin Lock: A ¼” diameter positive action steel pin encased with 5/32” thick fabricated plated steel.
Gap: Standard range between door frames is from 1 9/32” to 2”. A dimension larger than 2” would normally be considered a wall unit. Can be factory modified to collapse to as small as ¾” gap.
Raincap: An optional awning like attachment that hooks to the outside frame for use in diverting water and preventing it from entering the pet door from above.
Installation Overview & Guide
Please read these instructions carefully and completely before attempting to install your pet door; they will guide you through the steps and precautions needed for a door installation. Illustrations and pictures have been added to help our customers understand various instructions.
Door Model - Installation Guide PDF
