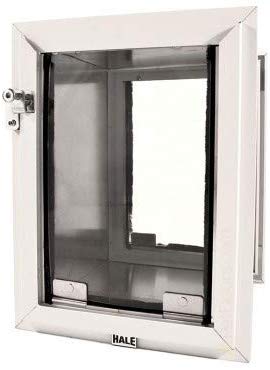

Hale Pet Door Wall Mounted Dog and Cat Door
Hale Pet Doors are the leading manufacturer in premium Dog and Cat Doors and are designed to last a lifetime. Don't waste your money on cheap imitations that will need to be replaced after only a few months of use.

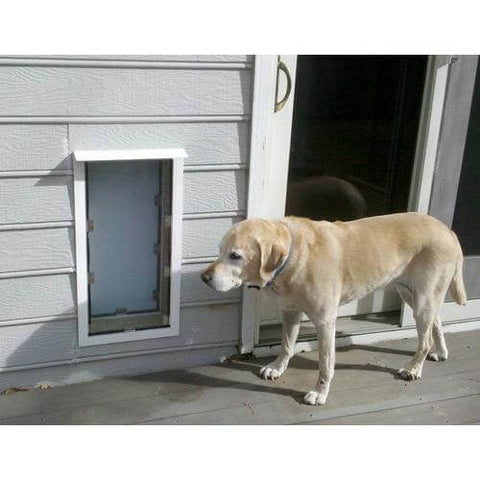

Wall Model Pet Door is our most popular model. It’s self-framing and self-supporting design allows it to adapt to fit any opening cut into an interior or exterior wall – whether it is standard construction, stucco, block or masonry walls. The energy-efficient doors stand up to all the elements whether the temperature outdoors is blistering hot or biting cold, Hale’s quality design and construction give greater protection from wind and unwanted critters. The wall model also comes standard with flashing underneath the tunnel for additional water containment and diversion and an optional free raincap!
It's one of the easiest doors to install and are to be installed through most any type of wall using a few household tools. *See "Installation" Tab at the top for full installation guides & videos or have one of our local installers do it for you.
*This door can ONLY be installed in a Wall, Here is the Door Mounted pet door
Top Features:

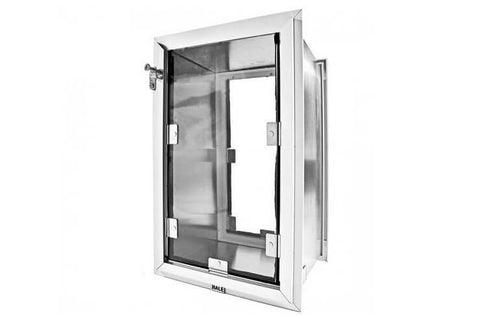

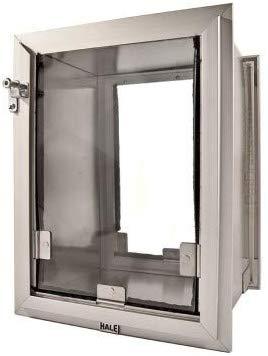

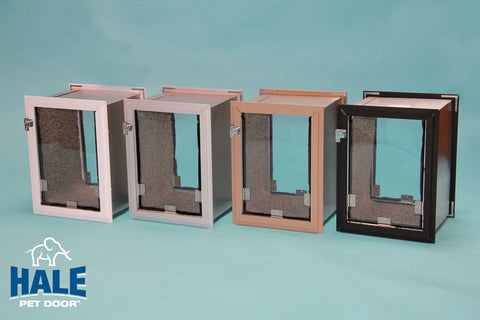

- Aluminum frame available in 12 sizes and 4 colors
- Clear vinyl flaps offered in single or double options. The double flap option provides additional insulation and protection from weather and is the recommended choice.
- Magnets and nylon weatherstrip around the edges of the flaps hold flaps in place and keep out the weather but are easy for pets of all sizes to use

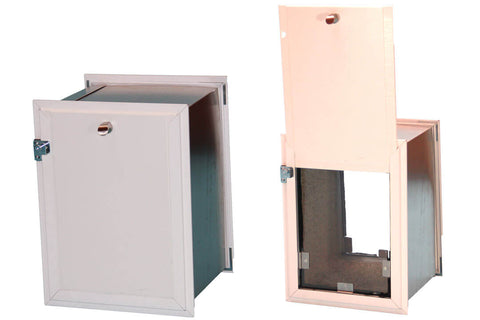

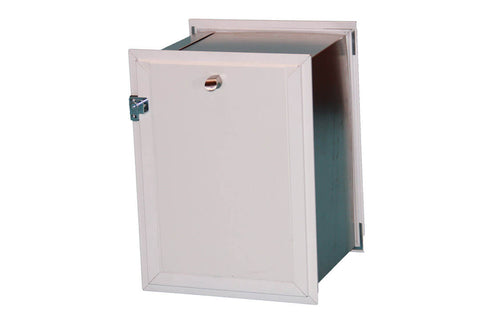

- Locking cover provides security as it shock and impact resistance. secures with a steel pin lock.
- Tunnel arrives pre-assembled and is attached to the inner frame. 2"-10" depth is standard, 2"-16" can be custom ordered.
- Stain, mold, and mildew resistant brown carpet covers the tunnel to protect pet paws from heat and cold.
- Made in the USA
- 5-year limited manufacturer warranty
Door Options:

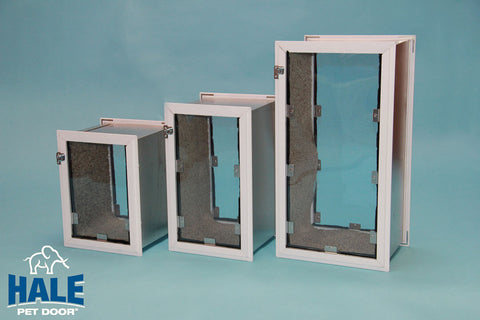

- Flap Size: The Door Model is available in 12 standard sizes shown in the chart below. For detailed sizing instructions, please see the "Sizing Guide" tab at the top.
- Flap Type: Our Door Model comes standard with double flaps (one flap on each wall surface) for improved insulation and energy efficiency. In some situations (i.e. installing in an interior wall) you may choose to install a single flap model. If you do choose a single flap, it will be installed on the exterior frame of your pet door.

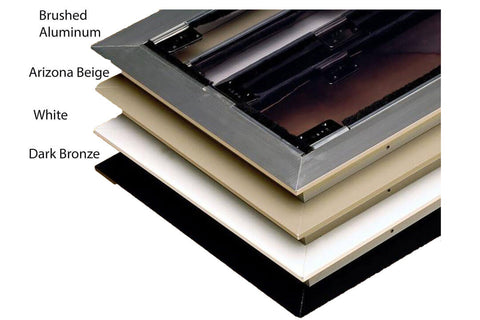

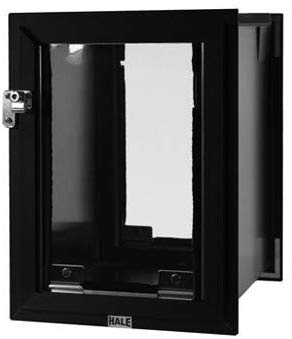

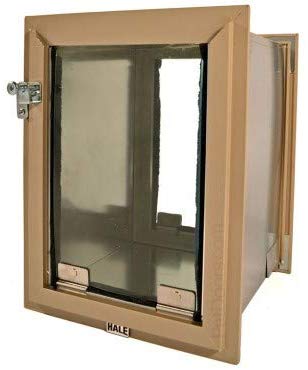

- Frame Color: White -- white hard coat paint. Beige -- hard-coat paint, looks like coffee with a couple of creamers added. Brushed Aluminum -- anodized metal, satin nickel color, looks like the bottom of a Coke can. Dark Bronze -- anodized metal, chocolate brown, looks almost black in dimmer light.
- Security Cover Load Direction: The security cover comes standard on our models as an interior top-load version. On occasion, there will be an obstruction above the pet door that prevents the security cover from being raised up far enough to remove. In those instances, we provide an optional side load model with your choice of left or right side slide (Load direction is determined when looking at the door).
- Secondary Exterior Cover (optional): Choose this option if you would like a second cover on the exterior of your door pet door. This cover does not come with a pin-lock unless purchased separately. NOTE: Selecting this option makes your door dog door a "custom" pet door for return policy purposes and entitles you to 50% credit towards the purchase of a new dog door should you need to return your pet door for any reason.
- Tunnel Length: The wall model comes with a standard 10" tunnel which will fit walls between 2" and 10" in thickness. We also offer an optional oversized 16" tunnel for deeper walls.
- Training Flap: The training flap is made of a similar material to our regular flap but it has no strikes and has been vertically slashed several times to make it very easy to push through. It does not, however, provide the energy efficiency of our regular flap and should only be used until your pet is used to using the door.
Sizing Chart
| Size | Passage Opening | Rough Opening | Outside Frame Dimensions | Shoulder Height | Pet Width | Pet Weight | Breed Example |
|---|---|---|---|---|---|---|---|
| Small | 5 1/2" w x 7 1/2" h | 7 3/8" w x 9 3/8" h | 8 3/8" w x 10 3/8" h | Up to 7" | Up to 4" | Up to 8 lbs. |
 Cats (only very small) |
| Small Medium | 6 1/2" w x 9 1/2" h | 8 1/2" w x 11 1/2" h | 9 9/16" w x 12 9/16" h | 9" - 13" | Up to 5" | 6-12 lbs |
 Most Cats, Chihuahua, Dachshund, Mini Poodle |
| Tall Small Medium | 6 1/2" w x 12 1/2" h | 8 1/2" w x 14 1/2" h | 9 9/16" w x 15 3/8" h | 12" - 15" | Up to 5" | 12-25 lbs |
 Mini Pinscher, Some Terriers, Maltese |
| Medium | 8 1/2" w x 12 1/2" h | 10 1/2" w x 14 1/2" h | 11 9/16" w x 15 3/8" h | 12" - 15" | Up to 8" | 10-35 lbs |
 Terriers, Pug, Corgi, Shiba Inu |
| Tall Medium | 8 1/2" w x 16" h | 10 1/2" w x 18" h | 11 9/16" w x 19 1/16" h | 15" - 20" | Up to 8" | 30-45 lbs |
 Cocker Spaniel, Sheltie, Beagle |
| Large | 11" w x 16" h | 13" w x 18" h | 14 1/16" w x 19 1/16" h | 15" - 20" | Up to 10" | 40-55 lbs |
 Basset, Chow, Keeshond, Husky |
| Tall Large | 11" w x 19 1/2" h | 13" w x 21 5/8" h | 14 1/16" w x 22 9/16" h | 21" - 24" | Up to 10" | 50-95 lbs lbs |
 German Shepherd, Labrador Retriever |
| Tall Large Plus | 11" w x 23 1/2" h | 13" w x 25 5/8" h | 14 1/16" w x 26 9/16" h | 25" - 27" | Up to 10" | Up to 110 lbs |
 Standard Poodle, Irish Setter, Greyhound |
| Extra Tall Large | 11" w x 27 1/2" h | 13" w x 29 5/8" h | 14 1/16" w x 30 9/16" h | 25" - 31" | Up to 10" | Up to 120 lbs |
 Afghan, Irish Wolfhound, Borzoi |
| Extra Large | 14" w x 19 1/2" h | 16" w x 21 5/8" h | 17 1/16" w x 22 9/16" h | 22" - 24" | Up to 13" | Up to 120 lbs |
 Rottweiler, Akita, Bulldog |
| Extra Large Plus | 14" w x 23 1/2" h | 16" w x 25 5/8" h | 17 1/16" w x 26 9/16" h | 25" - 27" | Up to 13" | Up to 150 lbs |
 St. Bernard, Newfoundland |
| Giant | 15 1/2" w x 27 1/2" h | 17 5/8" w x 29 5/8" h | 18 9/16" w x 30 9/16" h | 25" - 31" | Up to 14" | Most Giant Breeds |
 Great Dane, Mastiff, Great Pyrenees |
Why Choose a Hale Pet Door:
- Durability - unlike cheaper plastic doors, Hale Pet Doors are built using extruded aluminum with steel reinforced corners making them stronger and more durable than others. The flaps are made using a high quilty PVC vinyl which outlasts cheaper alternatives.
- Security & Safety - Each pet door comes with an impact and fire-resistant polymer security cover to intruders out and your home safe and secure. The cover is secured directly to the frame preventing the lock from being opened from the outside (unlike other pet doors).
- Energy Efficient - Ultra strong magnets, weather-resistant double flaps and all-around nylon weather stripping provide industry-leading energy efficiency in the harshest hot and cold climates
- Warranty & Support - All Hale Pet Doors include a comprehensive 5-Year "No-Fault" Warranty (see warranty below for details). Experienced technicians are available for consultation as needed to assist with installation.
- Made in the USA - All Hale Pet Doors are hand-built in the USA to the highest quality standards and attention to detail.
5-Year Warranty
Hale Pet Doors offers a 5-Year No Fault Warranty on all pet doors. Hale Pet Doors guarantees and warrants that products and component parts shall be free from any defects in material and workmanship. The warranty period for all Hale Pet Door models is effective from the date of purchase and extends to the anniversary date marking the end of the fifth year. Hale Pet Doors agrees to exchange or repair at the companies expense, any unit found to be defective in workmanship and/or material, subject to factory inspection. Some restrictions apply, please see complete Hale Pet Door Warranty for details.
How to Measure Your Pet
There are three measurements to take into consideration when choosing the correct size door for your pet, the following guidelines will help you get accurate measurements. If you get stuck or need any help please contact us, our experts are ready to help.
#1 - Measure Width – Simply measure your pet at the widest point and add an inch or two for safety. If your pet is long-haired, don’t forget that this may make them appear wider than they really are. Alternately, you can open a door just wide enough for your pet to pass through and measure the width of the opening, again adding an inch or two for safety.
#2 - Measure Height – The pet door flaps should be at least an inch or two above the top of your pet’s back not the head. To get this length, measure your pet from the withers (top of the shoulders) to the floor. Remember that your door won’t be placed completely at floor level.
#3 - Measure Rise – This measurement is only applicable for panel models which come with the rise built-in. Door, wall, screen, and window models can be mounted at whatever height is comfortable for your pet. If you have a short-legged dog or an older dog that can’t lift his feet very high, or if the door is installed with a step on either side, consider ordering a “no rise” door. Our standard rise is 5” or 10”.
Alternate method: You can also make a sample door opening out of a large piece of cardboard based on the above size chart. Place it in a door opening and experiment with height placement. Order the size most comfortable for your pet.
Door Sizing Chart
| Size | Passage Opening | Rough Opening | Outside Frame Dimensions | Shoulder Height | Pet Width | Pet Weight | Breed Example |
|---|---|---|---|---|---|---|---|
| Small | 5 1/2" w x 7 1/2" h | 7 3/8" w x 9 3/8" h | 8 3/8" w x 10 3/8" h | Up to 7" | Up to 4" | Up to 8 lbs. |
 Cats (only very small) |
| Small Medium | 6 1/2" w x 9 1/2" h | 8 1/2" w x 11 1/2" h | 9 9/16" w x 12 9/16" h | 9" - 13" | Up to 5" | 6-12 lbs |
 Most Cats, Chihuahua, Dachshund, Mini Poodle |
| Tall Small Medium | 6 1/2" w x 12 1/2" h | 8 1/2" w x 14 1/2" h | 9 9/16" w x 15 3/8" h | 12" - 15" | Up to 5" | 12-25 lbs |
 Mini Pinscher, Some Terriers, Maltese |
| Medium | 8 1/2" w x 12 1/2" h | 10 1/2" w x 14 1/2" h | 11 9/16" w x 15 3/8" h | 12" - 15" | Up to 8" | 10-35 lbs |
 Terriers, Pug, Corgi, Shiba Inu |
| Tall Medium | 8 1/2" w x 16" h | 10 1/2" w x 18" h | 11 9/16" w x 19 1/16" h | 15" - 20" | Up to 8" | 30-45 lbs |
 Cocker Spaniel, Sheltie, Beagle |
| Large | 11" w x 16" h | 13" w x 18" h | 14 1/16" w x 19 1/16" h | 15" - 20" | Up to 10" | 40-55 lbs |
 Basset, Chow, Keeshond, Husky |
| Tall Large | 11" w x 19 1/2" h | 13" w x 21 5/8" h | 14 1/16" w x 22 9/16" h | 21" - 24" | Up to 10" | 50-95 lbs lbs |
 German Shepherd, Labrador Retriever |
| Tall Large Plus | 11" w x 23 1/2" h | 13" w x 25 5/8" h | 14 1/16" w x 26 9/16" h | 25" - 27" | Up to 10" | Up to 110 lbs |
 Standard Poodle, Irish Setter, Greyhound |
| Extra Tall Large | 11" w x 27 1/2" h | 13" w x 29 5/8" h | 14 1/16" w x 30 9/16" h | 25" - 31" | Up to 10" | Up to 120 lbs |
 Afghan, Irish Wolfhound, Borzoi |
| Extra Large | 14" w x 19 1/2" h | 16" w x 21 5/8" h | 17 1/16" w x 22 9/16" h | 22" - 24" | Up to 13" | Up to 120 lbs |
 Rottweiler, Akita, Bulldog |
| Extra Large Plus | 14" w x 23 1/2" h | 16" w x 25 5/8" h | 17 1/16" w x 26 9/16" h | 25" - 27" | Up to 13" | Up to 150 lbs |
 St. Bernard, Newfoundland |
| Giant | 15 1/2" w x 27 1/2" h | 17 5/8" w x 29 5/8" h | 18 9/16" w x 30 9/16" h | 25" - 31" | Up to 14" | Most Giant Breeds |
 Great Dane, Mastiff, Great Pyrenees |
Other Considerations for Choosing the Correct Door Size
Older pets don’t like to use pet doors that are uncomfortable. Make sure you get a door that your pet will always be able to use. If you currently have a kitten or puppy, remember that they will grow.
Mount the pet door so that it is low enough for your pet to comfortably step over. Young pets can raise their legs up to their chest but older pets may have trouble with this.
Make sure the pet door is tall enough for your pet. Hunching over can be hard on your pet’s hips, especially as they age. And the flaps on your door will last longer if your pet isn’t rubbing against the top of the door as he passes through.
If you have more than one pet, make sure you get a door that will work for all of them: low enough for the shortest one to step over but tall enough for the tallest one to fit through comfortably.
Don’t forget that your pet needs access from both sides of your pet door. If you are installing the door in an area that has steps outside, please take into consideration how your pet will have to get through the door. This is especially true of our panel models. They have a standard rise of 5” but can be ordered with no rise (actually about 1” of frame to step over) instead to make it easier for your pet.
Hale Pet Doors Ship from Colorado via FedEx Ground
- Door and Wall models normally take 3-5 days to build and assemble for shipment currently do to their high demand.
- Transit time to you can be found using the map below.
Fast Shipping
We do our best to ship FAST and make it easy for you. At the top of this page, we have noted how long it normally takes to process and ship your order. You can then use the map above to estimate delivery times. We will send you an email confirmation with the tracking number as soon as your order ships
Please see our Shipping Policy for full details.
Easy Returns
Things don't always work out, we get it. We'll do our very best to make your return simple and easy. Please email us and we'll provide all the return instructions for your specific item and an RMA number (required).
Please see our Return Policy for complete details.
Easy Installation Overview

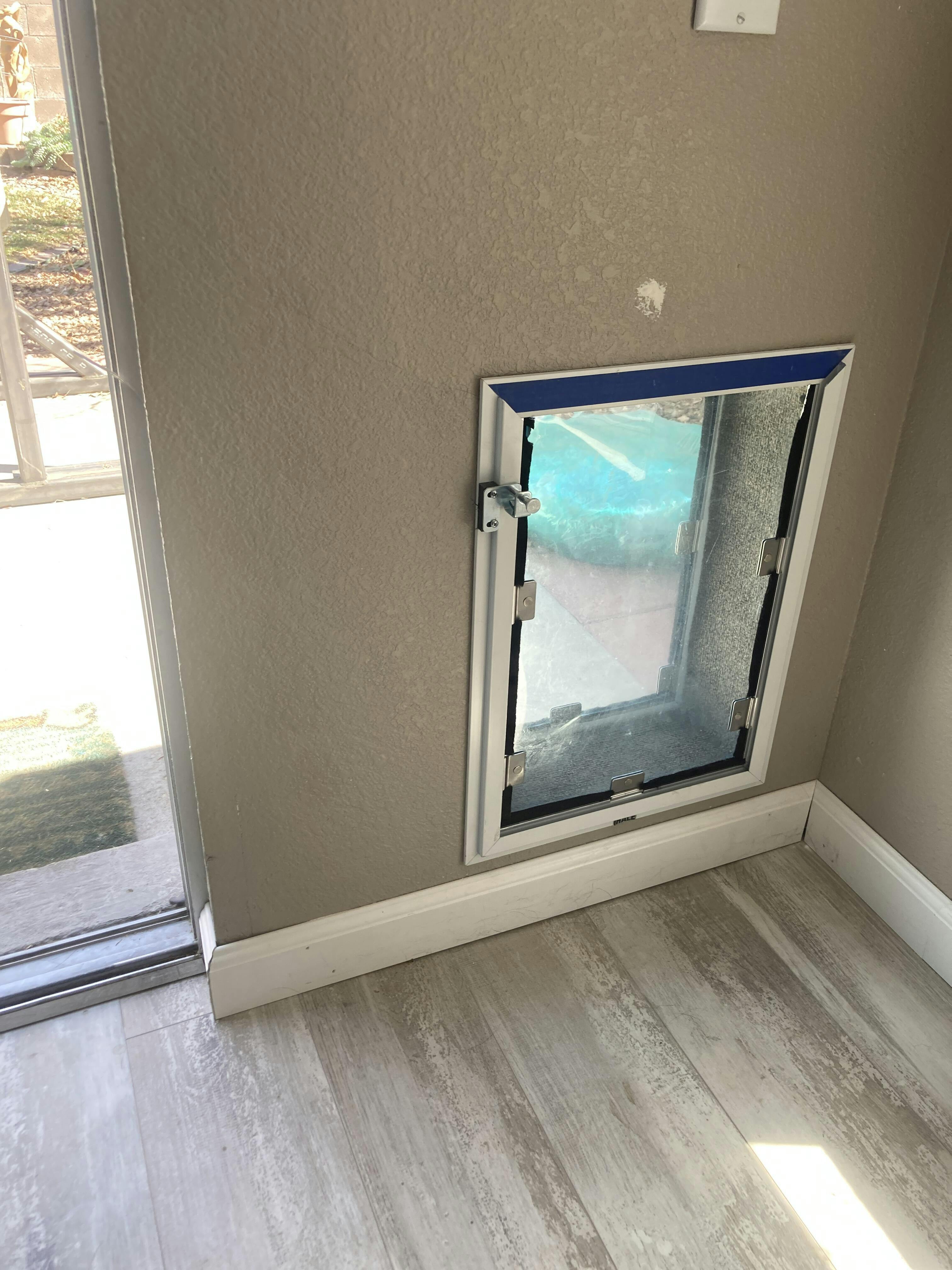

The Hale Pet Wall Mounted Door is the top-selling door from Hale Pet Doors. It's one of the easiest doors to install and is designed to fit almost any wall type. Hale wall doors are designed to be installed through most any type of wall using a few household tools.
- Cut an opening in your wall to the size of your new pet door.
- Cut the tunnel to the wall thickness, slip the outside frame into the tunnel and attach with provided screws (a 10-inch tunnel comes standard with all Hale wall mount pet doors, which works for any house wall between 2 and 10 inches thick. An oversize option is available for walls up to 16 inches thick).
- Under each tunnel, install the provided flashing which diverts any water that may find its way through the tunnel.
- Glue down the provided mildew and mold resistant olefin carpet to the bottom and sides of the tunnel. This carpet prevents the tunnel from getting too hot or too cold for your pet to walk on and helps prevent additional heat or light from entering your home. The carpet also keeps your home cleaner by wiping the dog's paws as he/she walks through the tunnel. The carpet can be easily cleaned with a vacuum hose attachment or spot cleaner using any household cleaner.
Wall Model - Installation Guide PDF
Installation Timelapse Video

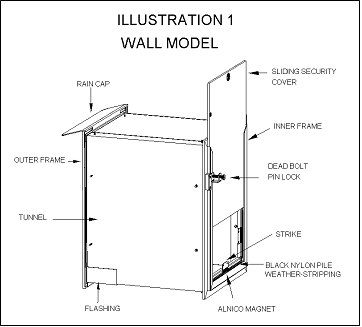

Specifications:
Flaps: Double flaps (one flap on each wall surface) made of flexible 3/16” clear PVC vinyl.
Inner Frame: Inner frame made of two separate metal extrusions. Three sides entrap the security cover. Both metals are .063” wall thickness.
Outer Frame: Extruded 6063-T5 aluminum with .063” wall thickness. Designed to sleeve into the inside frame.
Alnico5 Magnets: A ¼” rod magnet 1 ½” long made from aluminum, nickel and cobalt alloy known for its strength and durability. Door size determines number of magnets.
Strikes: Made of ferrous stainless steel. 1 ½” long, ¾” tall and 1/32” thick. U shaped with interior prongs, when squeezed onto the vinyl flap, the barbed prongs hold firmly.
Weather stripping: Flap is surrounded by ½” nylon pile for maximum insulation. Nylon is woven into a backing 9/32” wide and 1/32” thick.

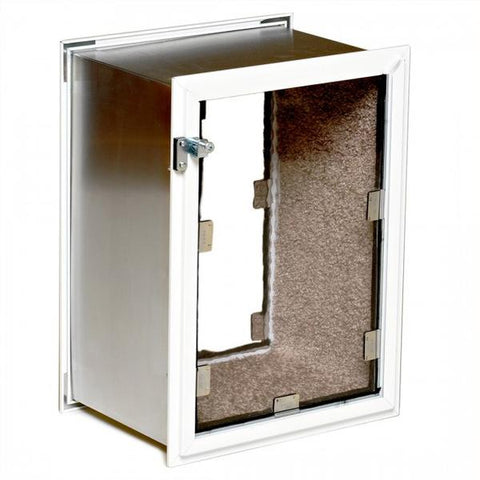

Tunnel: Pre-assembled .040” aluminum wrapped around and riveted and sealed to the inner flange of the inside frame. Attached to the outer frame at install.
Security Cover: 1/4” thick King Starboard® high-density polymer sheet. Extremely shock and impact resistant. Has a 3/8” diameter locking hole
Cover Handle: A lightweight zinc alloy cabinet knob pull type handle in a satin nickel finish that is 25/32” wide, 19/32” tall and 53/64” deep with a 1/2” deep and 21/32” wide finger hole. It is attached to the cover with a 12 mm long zinc coated steel flat head Philips screw with a .70 thread size that is countersunk to prevent scratching the frame.
Pin Lock: A ¼” diameter positive action steel pin encased with 5/32” thick fabricated plated steel.
Olefin Carpet: Stain, mold, and mildew-resistant carpet. Covers both inner walls and bottom of the tunnel.
Flashing: Metal strip added to bottom of tunnel to make sure that any water is shunted to the outside of the wall.

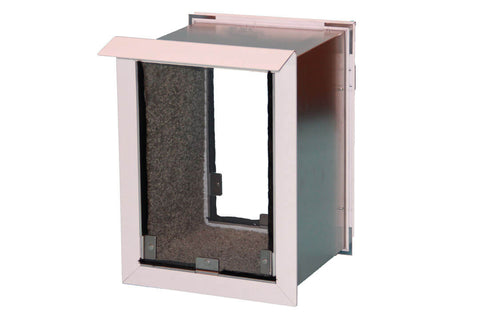

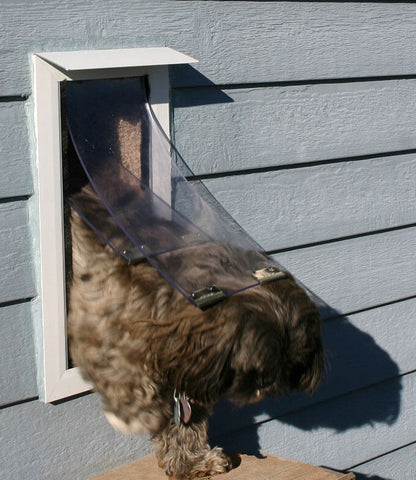

Raincap: An awning-like attachment that hooks to the outside frame for use in diverting water and preventing it from entering the pet door from above. It is offered as a free option wall model but its use is not available with a top-load exterior cover.
